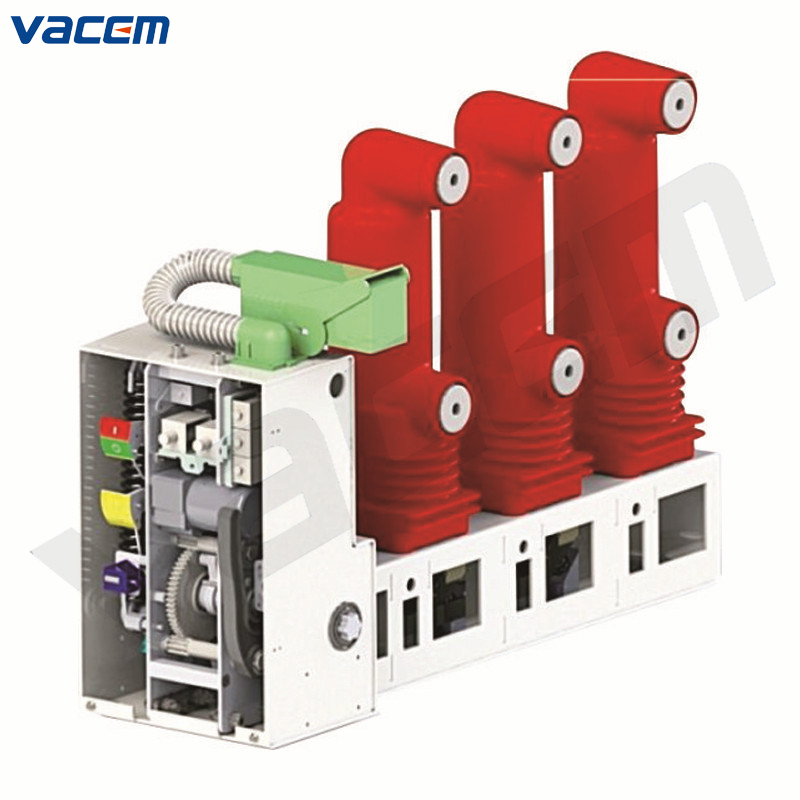

12kV Indoor High Voltage Side Installation Vacuum Circuit Breaker (VAC83)

Model NO.: VAC83-12kV (Side Installation)
Delivery: FOB
Minimum order quantity: 1 piece

Quantity:

Product Description

Basic Info.

Model NO.	VAC83-12kV
Poles Number	3
Type	Circuit Breaker
Function	Conventional Circuit Breaker
Certification	ISO9001-2000, CE, CCC
Power Frequency Withstand Voltage	42kV
Lightning Impulse Withstand Voltage	75kV
Clearance Between Open Contact	10-12mm
Over Travel	2.5-3.5mm
D.C Component	50%
Trademark	VACEM
Origin	Wenzhou, China

1.General description

VAC83-12kV series of indoor M.V. VCB with lateral operating mechanism used spring to storage energy. The operating mechanism can be operated by two ways: by manual and electromotive operation. The characteristics is accordance with IEC standard 62271-1 00:2001 M.V. AC circuit breaker,JB3855-1996 3.6-4.5kV Indoor AC M.V. circuit breaker and GB1984-2003 M.V. AC circuit breaker

2.Product characteristics

Taking different functional units as the dividing line to realize the full modular design.

The integrated and optimized design minimizes the intermediate realization link of the functional unit,and the overall mechanism only has more than 70 parts.

There is no adjustment link in the mechanism to minimize the professional requirements for maintenance personnel.

The whole series of products are easy to operate.

Small mechanical operation vibration.

Mechanism with manual energy storage handle.

Fast replacement of wearing parts without special tools.

The whole series of mechanisms have passed the verification of 72 hour salt spray test.

3.Simple and reliable structure

Less closing interlocking parts, convenient integrated installation,effective prevention of false closing.

The opening adopts friction type structure, with small wear and failure rate, so as to improve mechanical life.

4.Main technical parameter

Item	Unit	Data
Rated voltage	kV	12
Rated power frequency withstand voltage	kV	42
Rated lightning impulse withstand voltage	kV	75
Rated frequency	Hz	50
Rated current	A	630, 1250, 1600
Rated short circuit breaking current	kA	20, 25, 31.5, 40
Rated peak withstand current	kA	50, 63, 80, 100
Conductive circuit resistance of each phase	µΩ	≤40, ≤50
Clearance between open contacts	mm	11±1
Overtravel	mm	3±0.5
Contact bouncing duration at closing opening	ms	≤2
Out of simultaneity of CO operation of three poles	ms	≤2
Opening time	ms	≤50
Closing time	ms	≤100
Average opening speed	m/s	0.9~1.3
Average closing speed	m/s	0.4~0.8
D.C component	%	50
