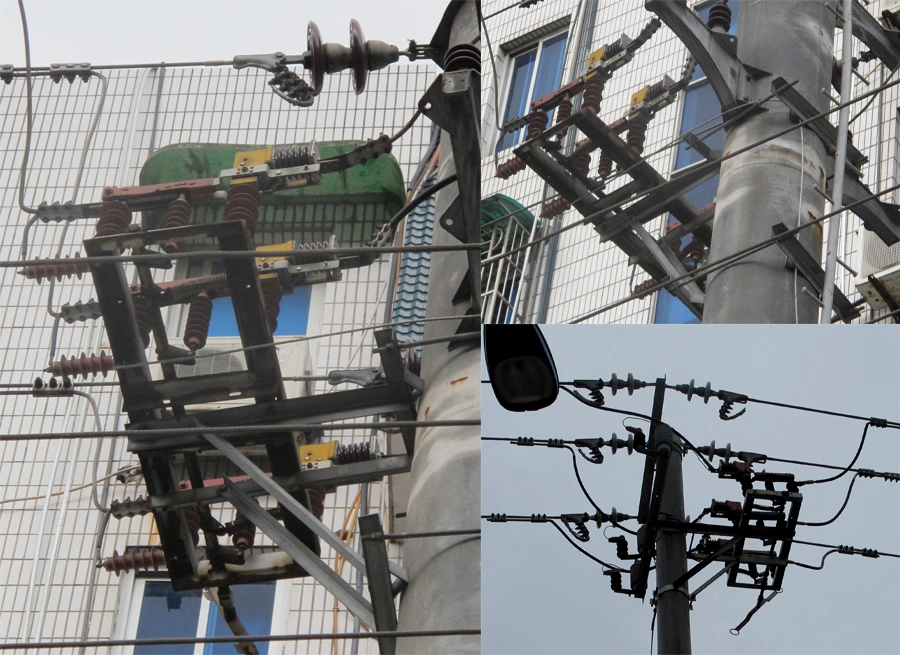

12kV Outdoor High Voltage Isolating Load Break Switch (FZW32)

Model NO.: FZW32-12D/T630-20
Delivery: FOB
Minimum order quantity: 1 piece

Quantity:

Product Description

Basic Info.

Model NO.	FZW32-12D/T630-20
Series	Three
Certification	CE, ISO9001
Brand	Vacem
Rated Power Load Breaking Current	630A
Rated No-Load Transformer Capacity	1600kVA
Rated Short Circuit Duration	4s
Mechanical Life Time	10,000 times
Rated Short Circuit Making Current	50kA
Trademark	VACEM
Origin	Wenzhou, China

1.General description

FZW32-12/T630-20 outdoor H.V. isolating vacuum load break switch, a new generation of H.V. electrical equipment jointly developed by Weicheng electrical co.,ltd. with techniques of xi' an High-voltage Electrical Equipment Research Institute and firstly manufactured by our company, has passed the strict type test long-term test.All of its technical performance indexes have been up to the standard of GB3804 and IEC. The product is designed mainly for building and upgrading urban and rural grid and is applicable for the grid with rated voltage of 12kV, 3-phase AC 50Hz.

Its base is made of stainless steel or pot galvanized carbon steel with anti-ultraviolet coating, which ensures that is can run smoothly outdoors. All of its parts are made of stainless steel to improve the durability, stability, waterproofness, and salt fog resistance of the load switch. It is entitled to compactness,light weight, handsome figure, operation friendly, high parameters and breaking capability, safe and reliable, long service life, can be operated frequently, requires less servicing, and has evident fracture. It can be operated manually with a single pole,or electric remote control.

2.Main technical parameter

Item	Unit	Data
Rated voltage	kV	12
Rated frequency	Hz	50
Rated current	A	630
Rated power load breaking current	A	630
Rated closed-loop breaking current	A	630
5% rated power load breaking current	A	31.5
Rated cable charged breaking current	A	10
Rated no-load transformer capacity	kVA	1600
Rated breaking capacitor bank current	A	100
1 min P.F. withstand voltage (vacuum fracture,phase to phase,to earth/isolating fracture)	kV	42/48
Lighting impulse withstand voltage (phase to phase,to earth/isolating fracture)	kV	75/85
Rated short time withstand current (thermal stably)	kA	20
Rated short circuit duration	S	4
Rated peak withstand current (dynamic stably)	kA	50
Rated short circuit making current	kA	50
Mechanical life time	time	10000
Contact allowable attrition thickness in the vacuum interrupter	mm	≤2
Manual operation torque	Nm	≤200
Vacuum interrupter assembly adjustment of load break switch opening distance between contacts	mm	5±1
Vacuum interrupter assembly adjustment of load break switch average opening speed	m/s	1.1±0.2
Vacuum interrupter assembly adjustment of load break switch tri-phase opening synchronous	ms	≤5
Vacuum interrupter assembly adjustment of load break switch tri-phase closing synchronous	ms	≤2
Vacuum interrupter assembly adjustment of load break switch air distance of electrics and phase to earth	mm	>200
Vacuum interrupter assembly adjustment of load break switch auxiliary circuit resistance	μΩ	≤400

Installation mode	Horizontal width	AB Phase to phase distance	BC Phase to phase distance
Single-pole horizontal installation	1300	750	320
Single-pole side installation	1230	500	500
Single-pole side installation	1050	400	400
